InstaVoIP 516-CN Development Kit
InstaVoIP 516-CN Module


InstaVoIP® 516-CN Module

A VoIP hardware/software combination

The InstaVoIP 516-CN Module is a standalone hardware module ready to be connected into an existing hardware platform or used as the foundation of a new product. Based on a powerful Analog Devices Blackfin processor, the 516-CN includes an Ethernet connection, 4 MB of Flash, 16MB of SDRAM, and a 48kHz capable stereo audio codec. The 516-CN is based on Unicoi’s industry-leading embedded software including the Fusion RTOS, TCP/IP stack, Voice Engine, SIP stack, and VoIP Call Manager. Out-of-the-box, 516-CN is immediately capable of creating 8-way conference calls using G.729 or other codecs and still has enough free processing power to run user applications. The InstaVoIP 516-CN Module is designed and manufactured in the US.


Software Features

  • Fusion RTOS
  • TFTP Client
  • Telnet Server
  • Voice Engine with RTP (includes support for RoIP products)
  • Voice Engine Codecs: G.711 (µ-law, A-law), G.722, G.726 (16/24/33/40 kbps), G.729, DVI4 (narrow/HD/Ultra HD), iLBC, Speex (narrow/HD/Ultra HD), SILK, L16 PCM (narrow/HD/Ultra HD/CD)
  • Data Flash Management (Multi-Partition File System, Advanced Firmware Management, Bootloader, Secure Area)
  • SIP
  • Fusion TCP/IPv4/IPv6
  • DHCP Client
  • Extensible Command Line Interface
  • Web Server with Extensible Configuration Web App and Configuration and Control Web Services
  • VoIP Call Manager (includes support for incoming calls, outgoing calls, hold, conferencing, transfers, mic/speaker volume control and mute, etc.)
  • Configuration Subsystem (file based or can integrate with other platform standard)
  • Optional Security (SIPS, SRTP)

Hardware Features

  • 1 10/100 Ethernet Connection MII/RMII to external PHY or switch
  • 1 Three-phase 16-bit center-based PWM unit
  • 2 SPIs
  • 1 TWI
  • 1 Real Time Clock
  • 300 MHz Processor speed (Optional 400 MHz)
  • 8 Mbytes SDRAM
  • 8 32-bit Hardware Timers with PWM support
  • 2 UARTS
  • 2 SPORTs
  • 1 SDIO interface
  • 1 Watchdog Time
  • 4 Mbytes Flash
  • 2 channel Audio Codec with variable sampling rates up to 48kHz and 24 bits
  • Industrial Temperature: -40°C to +85°C
  • RoHS Compliant
  • Manufactured in the US

Start Quick with the DevKit

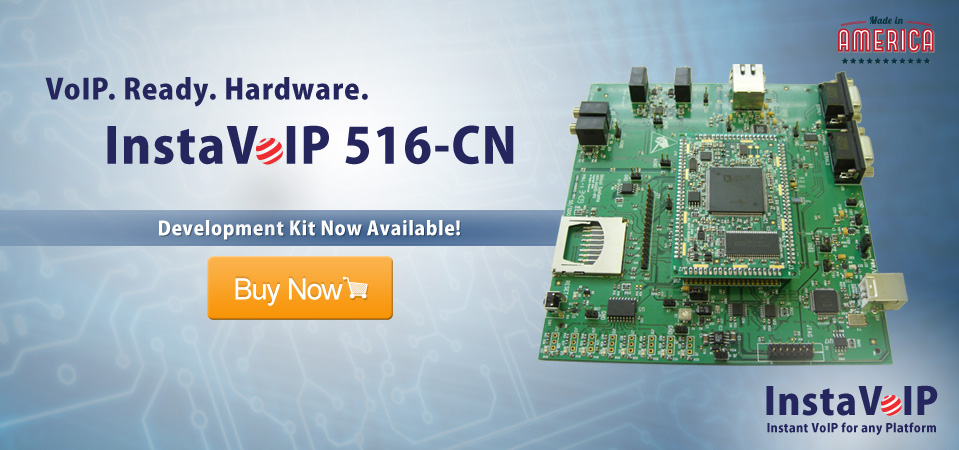

The InstaVoIP 516-CN Module Development Kit consists of one InstaVoIP 516-CN Module, one debug carrier board, USB cable (for power only), Ethernet cable and headset. The initial InstaVoIP 516-CN Module Development Kit requires the VisualDSP++® Development Environment from Analog Devices along with a JTAG Emulator. The development kit is designed and manufactured in the US.


Production Ready Modules

Once your design using the 516-CN Development Kit is complete and it is time to go to production, 516-CN Modules can be purchased in any quantity.


A low-power, "Green" Module

A typical IP Phone uses 1 to 4 watts of power just sitting on the desk in an idle state. InstaVoIP 516-CN Module uses less than 5 milliwatts in idle mode and 600 microwatts in Deep Sleep mode. This low power design allows InstaVoIP to be the foundation for a wide variety of “GREEN” consumer and business products.


Video Tutorial

InstaVoIP Architecture Diagram
*Click here to download .png version of diagram
